Design and analysis of spatially symmetric multi-dimensional delayed resonators

Wim Michiels¹, Senior Member, IEEE, Tomas Vyhlidal², Karel Kraus³, Zbynek Sika³

¹Department of Computer Science, KU Leuven, Leuven, 3001, Belgium,
e-mail: wim.michiels@cs.kuleuven.be

²Department of Instrumentation and Control Engineering, Faculty of Mechanical Engineering, Czech Technical University in Prague, Technicka 4, 16000, Prague 6, Czechia,
email: tomas.vyhlidal@fs.cvut.cz

³Department of Mechanics, Biomechanics and Mechatronic, Faculty of Mechanical Engineering, Czech Technical University in Prague, Technicka 4, 16000, Prague 6, Czechia,
email: karel.kraus@fs.cvut.cz, zbynek.sika@fs.cvut.cz

Abstract

The contribution of the paper is three-fold. First, a novel, spatially symmetric two-dimensional vibration absorber is proposed. Structural conditions are given for unified frequencies and damping ratios, which lead to a one-parameter family of absorbers. Local proportional delayed feedback control laws are then derived that turn the absorber into an ideal absorber with assignable resonance frequency, which generalizes the delayed resonator. Second, it is proven that the time-averaged power requirement of the actuators in operation, deployed to compensate damping and adjust the resonance frequency to the one of a harmonic excitation force, as well as  the stability  of the controlled absorber, do not depend on the geometry of the unified absorber. However, the power distribution over the links strongly depend on the geometry, as illustrated with a comparison between the new symmetric configuration and a previously proposed asymmetric one. Third, the generalization to spatially symmetric three-dimensional absorbers is addressed. Among other results, it is shown that all admissible spatial configurations for  unified frequencies and damping ratios are identical up to reflection and rotation, in sharp contrast to the two-dimensional setting.

Draft paper link: http://hdl.handle.net/10467/120164
Final paper link: [to be inserted later]
Data link: [to be inserted later]

Results from the simulation case study

Parameters of the symmetric 2D unified $(\zeta,\Omega)$-absorber

mass: $m=\SI{4.072}{kg}$
moment of inertia: $\mathcal{I}=\SI{0.1675}{kgm^2}$
diameter: $R=\SI{0.2021}{m}$
link stiffness: $k=\SI{3264}{Nm^{-1}}$
link damping: $c=\SI{5.404}{Nsm^{-1}}$
link length: $D=\SI{0.25}{m}$
link angle: $\theta=0.7819$

natural frequency: $\Omega=\SI{34.675}{s^{-1}}$
damping: $\zeta=0.0287$

Parameters of the Stewart-like asymmetric 2D unified $(\zeta,\Omega)$-absorber

Designed with the same mass, moment of inertia, natural frequency and the damping as for the symmetric absorber.

mass: $m=\SI{4.072}{kg}$
moment of inertia: $\mathcal{I}=\SI{0.1675}{kgm^2}$
length: $L=\SI{0.5736}{m}$
center position: $d=\SI{0.1434}{m}$
link stiffness: $k_1=\SI{2448}{Nm^{-1}}$,
                                          $k_2=\SI{4896}{Nm^{-1}}$,
                                          $k_3=\SI{2448}{Nm^{-1}}$
link damping: $c_1=\SI{4.053}{Nsm^{-1}}$
   $c_2=\SI{8.106}{Nsm^{-1}}$
$c_3=\SI{4.053}{Nsm^{-1}}$

natural frequency: $\Omega=\SI{34.675}{s^{-1}}$
damping: $\zeta=0.0287$

Parameters of the primary structure

Model adapted from the Appendix B of: Šika, Z., Vyhlídal, T., & Neusser, Z. (2021). Two-dimensional delayed resonator for entire vibration absorption. Journal of Sound and Vibration, 500, 116010. https://doi.org/10.1016/j.jsv.2021.116010

mass: $m_p=\SI{20}{kg}$
moment of inertia: $\mathcal{I}_p=\SI{ 11.56}{kgm^2}$
link stiffness: $k_x=\SI{10000}{Nm^{-1}}$,
                                          $k_y=\SI{10000}{Nm^{-1}}$,
                                          $k_\varphi=\SI{10000}{Nm^{-1}}$
link damping: $c_x=\SI{116.72}{Nsm^{-1}}$
   $c_y=\SI{98.76}{Nsm^{-1}}$
$c_\varphi=\SI{100}{Nsm^{-1}}$

Center of mass of the primary unified with the center of mass of the absorber, for both the considered cases. For the asymmetric, it yields $\xi_A=\SI{-0.4302}{m}$, and $\eta_A=\SI{-0.1434}{m}$.

Excitation force

magnitude: $F=\SI{20}{N}$
frequency: $\0mega=\SI{28.589}{s^{-1}} (\SI{4.55}{Hz})$

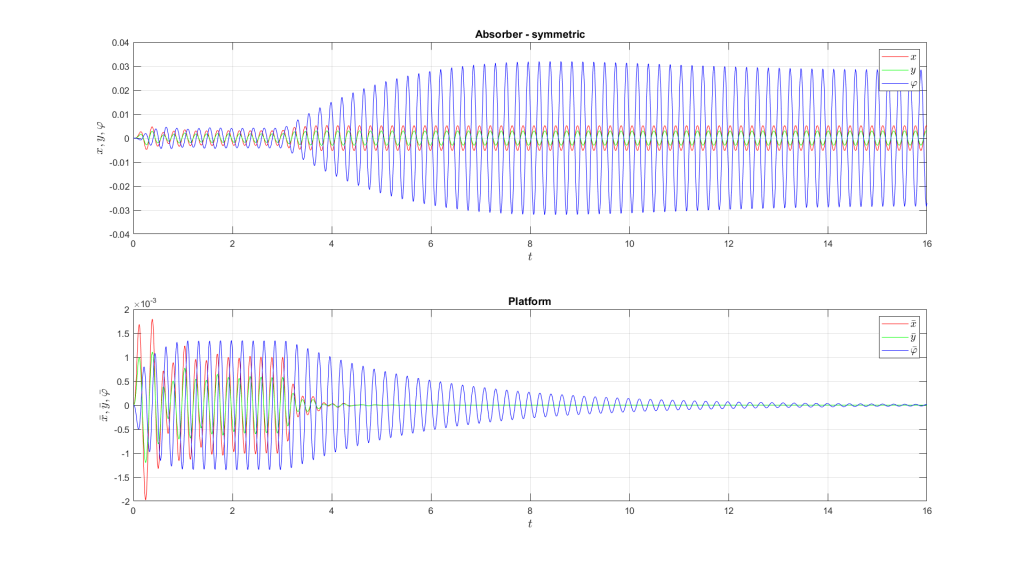

Case 1

Force position: $x_F=\SI{0.3}{m}$
  $y_F=\SI{0.4}{m}$

Force angle: $\alpha\SI{30}{^{\circ}}$

Force projection: $F_x=\SI{17.320}{N}$
$F_y=\SI{10}{N}$
$T=\SI{-3.928}{Nm}$

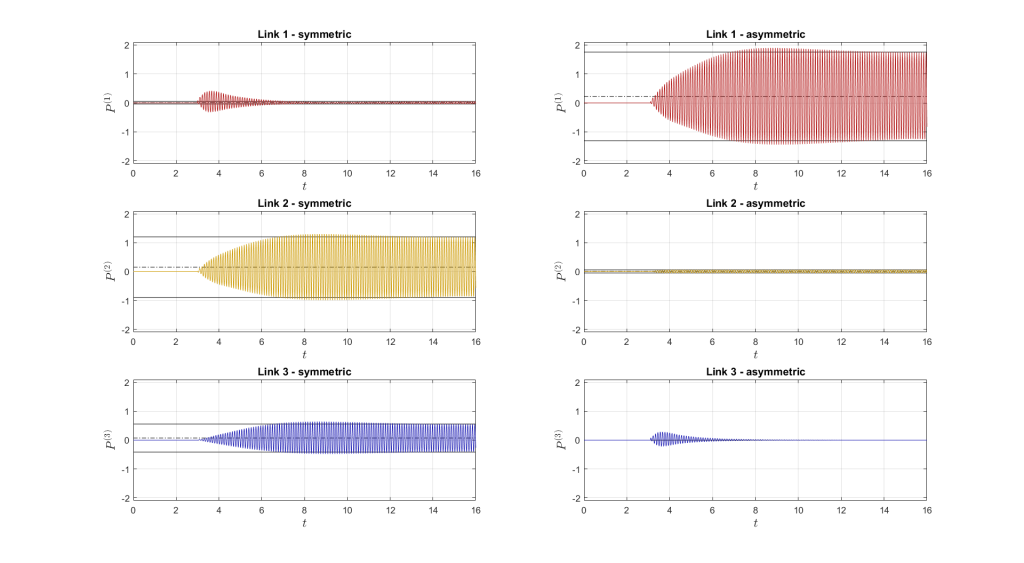

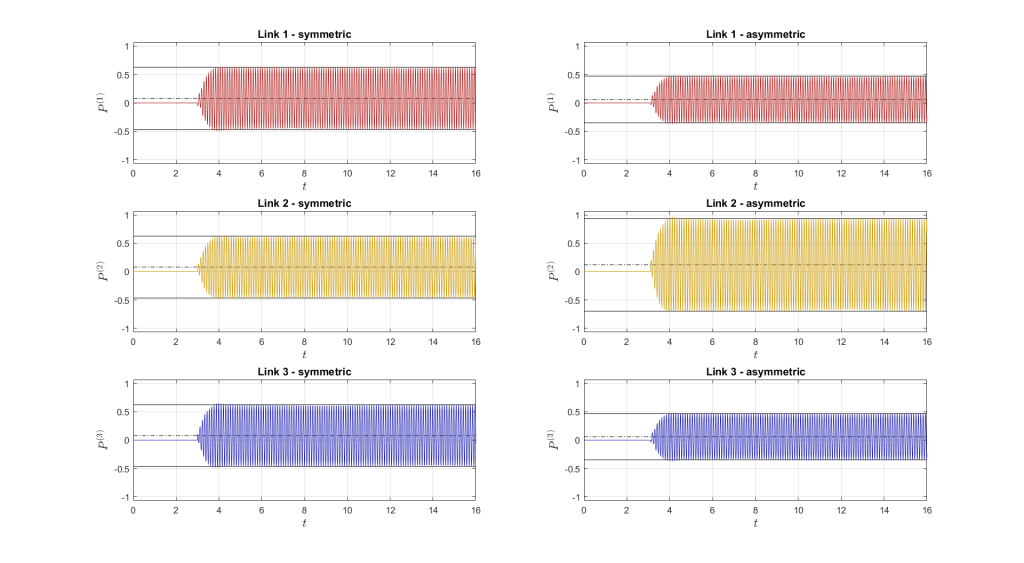

Power in the links

	Symmetric			Asymmetric
	Average P [W]	Amplitude A [W]	Average P [W]		Amplitude A [W]
Link 1	0.0063	0.0434	0.2238		1.5308
Link 2	0.1540	1.0530	0.0080		0.0548
Link 3	0.0715	0.4892	0		0

Case 1 – Animation video – for visualization reasons, the motion and angular deflections are $10\times$ amplified.
